Spirit Pocket Clip
on: March 07, 2007, 03:17:55 AM
STOP!
If you are not already seated, I'd advise you to sit down before reading any further. I wouldn't want anyone to pass out and fall down from the shock of what I'm about to say.......

I FINALLY GOT AROUND TO PUTTING A POCKET CLIP ON THAT VIC SPIRIT!!

No kidding! (I first started talking about and planning this project over two months ago........sheesh!) Anyhow, here's how the whole thing went:

After first buying a couple of pocket clips from KnifeKits.com, I went through a bit of head scratching and pondering, trying to figure out how to best proceed. Modifying the shape of the clip to fit the Spirit was easy, but how to best attach it? I was reluctant to drill and tap holes through the sides of the handles, because of the cutouts and notches in the plier-head bracket below. Due to the arrangement of the holes already in the pocket clips, there was no good location on the Spirit that would not result in a tapped hole being "half in and half out" of an edge in the plier-head bracket underneath.

So I finally gave up on the idea of using one of the KnifeKits pocket clips, and instead decided to commit an act of blasphemy and use a Leatherman Charge clip on my Victorinox!  :o

Below is what I started with, a brand new Spirit and an extra Charge/Wave/Surge clip:



First I carefully machined off the head of the plier pivot rivet until it was perfectly flush. Then a #4-40 hole was drilled and tapped right down the center of the rivet. (Don't try this with a hand drill, you'll never keep the drill bit going straight and square. Put the Spirit in a good drill press vise with padding and make sure it is sitting exactly level. Drill the hole with a drill press or milling machine at low RPM's.)



Here's what it looked like at this point. The hole is about 5/16" or 8mm deep.

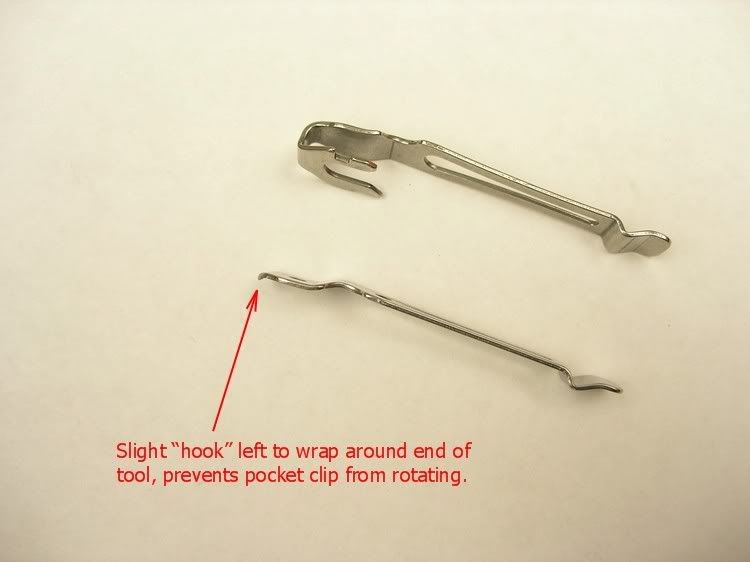

Then it was time to modify the Leatherman pocket clip. The two pictures below show the clip "before" and "after." Grinding off the excess wrap-around metal, then contouring and rounding the end are the obvious things to do. However, the real key to this whole project was to leave a small lip of the original metal hanging down.....



The real bane of mounting a pocket clip is to somehow keep the darn thing from moving and pivoting. On many knives I see, this is accomplished by using two or oftentimes three mounting screws. Not an option here. So I left the little "hook" of metal hanging down, then positioned the mounting hole so that the hook of metal is clamped tightly against the top edge of the Spirit.



The last step was to obtain a nice stainless button head Torx screw, which I bought from KnifeKits. It was a bit dull, so I polished the head of it up to match the finish of the pocket clip and the Spirit.



Then I put a drop of Locktite on the screw and tightened 'er up. Here's what she looks like:



Another angle.



And yet another. (I'm soooooo proud.)


~Bob
