OH Locksmith
on: August 08, 2009, 05:22:59 AM
 No picts until tomorrow, but:

I have successfully made a One Handed Locksmith.

Starting with a OHT and a Locksmith, the plan was to pull off the can and bottle opener layer and the 2 hand main blade layer of the locksmith and put the OH mainblade and opener layers from the Trekker.

That was the plan  :-\

As it turns out, it took a little more effort.  The locksmith fell to pieces as I tapped out the pins.  Therefore I had to hand build the entire knife.  That ended up making the process easier overall.  The original Locksmith has a liner between the saw and file half of the knife and the blade half.  If I had left that liner in, I would have had to make all new pins.  Since I was hand building the whole thing, I decided to try it without the liner, just to give a little more length to the original locksmith pins.

The assembly was a little more tricky because the liner lock loads the pins, making it harder to get in place with the file and saw layers correctly set on their backsprings. However, once it was together there were no problems in function of the knife by leaving out the liner AND it allowed me to reuse all the old pins.

The liner lock on the blade is pretty tight, but I suspect it will loosen up with use.  The cap lifter locks perfectly. Excellent snap to the knife too.

'Tis late tonight, but I'll take pics tomorrow and post them up.


Offline cgk

  • No Life Club
  • ******
    • Posts: 1,681
Re: OH Locksmith
Reply #1 on: August 08, 2009, 05:38:06 AM
ITS ALIVE!!!!  I was waiting for this.  YOU ARE MY MOD HERO!!


Offline Anthony

  • No Life Club
  • ******
    • Posts: 3,994
  • Improvise.
Re: OH Locksmith
Reply #2 on: August 08, 2009, 06:06:04 AM
Sounds good, can't wait to see pics :tu:

[


gb Offline Mike, Lord of the Spammers!

  • Chief of the Absolutely No Life Club!
  • *
  • Abandon All Hope Ye Who Enter Here...
  • ***********
    • Posts: 42,975
  • Why haven't you got a Farmer yet!
Re: OH Locksmith
Reply #3 on: August 08, 2009, 09:41:36 AM
Sounds great mate :salute:

Now where are the pics :pok: :pok: :D
Give in, buy several Farmer's!!!!!!


Offline Tinnie

  • No Life Club
  • ******
    • Posts: 1,374
  • I hate Velcro!
Re: OH Locksmith
Reply #4 on: August 08, 2009, 10:56:04 AM
Sounds like a great mod.....now pictures! :D :)
[


um Offline Mr. Whippy

  • Global Moderator
  • *
  • *
  • Zombie Apprentice
  • *
    • Posts: 12,170
  • North American Meetup: May13-15 2011
Re: OH Locksmith
Reply #5 on: August 08, 2009, 02:15:12 PM

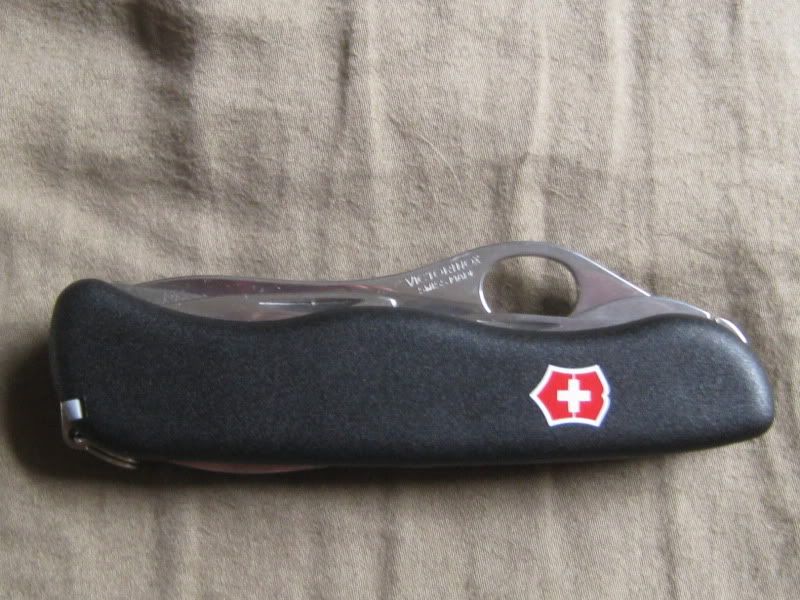

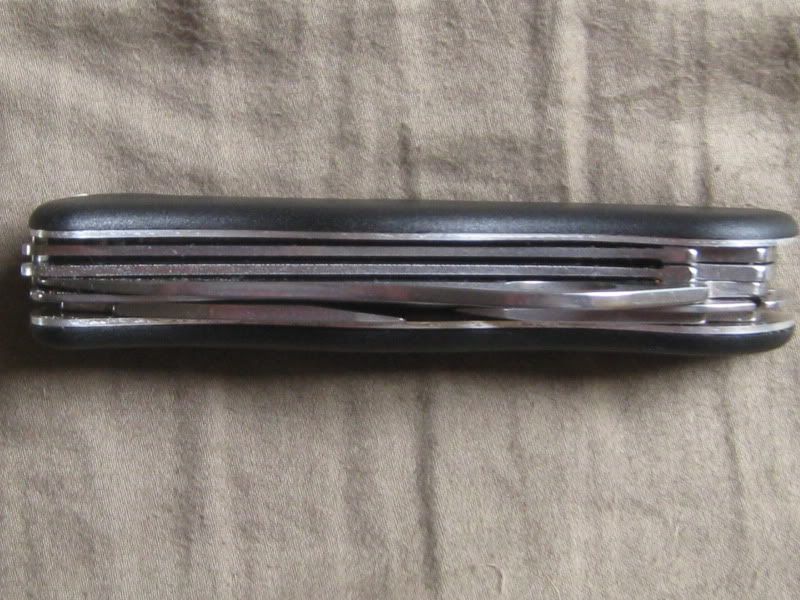

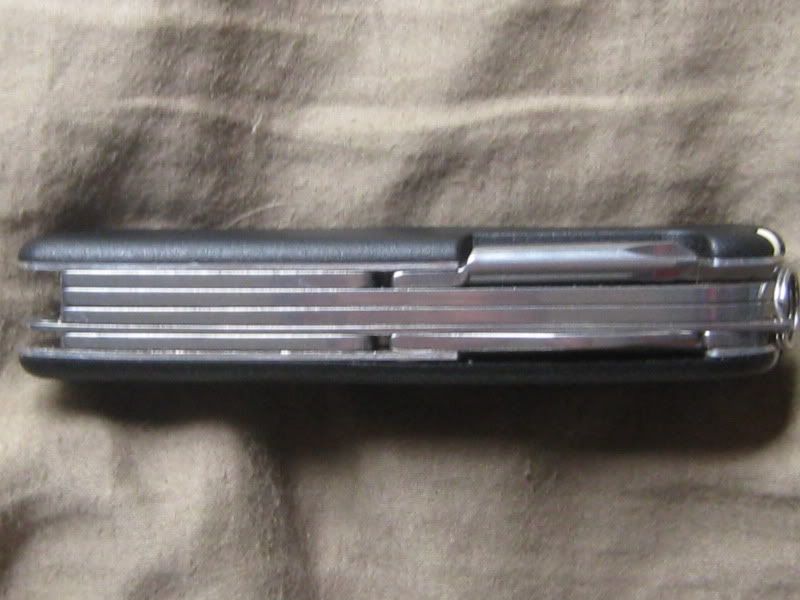

Pics:






gb Offline nuphoria

  • Ambidangerous Mistress of Mod
  • Admin Team
  • *
  • Zombie Apprentice
  • *
    • Posts: 15,038
  • I'm not all bad, I'm just drawn that way.
Re: OH Locksmith
Reply #6 on: August 08, 2009, 02:18:55 PM
What a great job  :cheers:

That is a really useful bit of kit... how much you want for it?  :D
A dyslexic man walks in to a bra...

All my music for free: http://soundcloud.com/chrissyvandyke


Offline Tinnie

  • No Life Club
  • ******
    • Posts: 1,374
  • I hate Velcro!
Re: OH Locksmith
Reply #7 on: August 08, 2009, 02:31:10 PM
OMG that looks awesome!

I want...I want!
[


Offline cgk

  • No Life Club
  • ******
    • Posts: 1,681
Re: OH Locksmith
Reply #8 on: August 08, 2009, 03:50:22 PM
What a great, useful tool.  That is a very very useful mod, great job!! :drool: :drool:


gb Offline Neil

  • Multitool.org Main Site Manager
  • *
  • Zombie Apprentice
  • ********
    • Posts: 15,287
Re: OH Locksmith
Reply #9 on: August 08, 2009, 04:04:02 PM
Hats off to you sir  :salute:  Looks good  :tu:
I'm not taking any more mod orders at present, sorry.


us Offline WhichDawg

  • Absolutely No Life Club
  • *******
    • Posts: 7,305
Re: OH Locksmith
Reply #10 on: August 08, 2009, 05:02:49 PM
really sweet job :tu:

(now do it again with pics of each step! :pok: )


scotland Offline Gareth

  • Admin Team
  • Point Of No Return
  • *
    • Posts: 36,604
Re: OH Locksmith
Reply #11 on: August 08, 2009, 05:51:10 PM
Very nice mate, that looks like an extremely handy SAK. :tu:
Be excellent to each other and always know where your towel is.


gb Offline Mike, Lord of the Spammers!

  • Chief of the Absolutely No Life Club!
  • *
  • Abandon All Hope Ye Who Enter Here...
  • ***********
    • Posts: 42,975
  • Why haven't you got a Farmer yet!
Re: OH Locksmith
Reply #12 on: August 08, 2009, 06:56:50 PM
Look's bloody handy mate :tu:
Give in, buy several Farmer's!!!!!!


england Offline Benner

  • Global Tuffy
  • *
  • Absolute Zombie Club
  • *********
    • Posts: 28,081
  • Just Awesome! And a Slayer of Polar Bear!
Re: OH Locksmith
Reply #13 on: August 08, 2009, 06:57:07 PM
Nice one.  :tu:
I'm back!!


Offline american lockpicker

  • No Life Club
  • ******
    • Posts: 3,138
Re: OH Locksmith
Reply #14 on: August 08, 2009, 08:03:35 PM
Nice! Now if we could get Vic to start making them.
(


us Offline ducttapetech

  • Zombie Apprentice
  • ********
    • Posts: 18,707
  • Whiskey Tango Foxtrot, over.
Re: OH Locksmith
Reply #15 on: August 09, 2009, 04:19:41 AM
Well done!
Nate

SEND IT!


Offline max6166

  • No Life Club
  • ******
    • Posts: 1,547
Re: OH Locksmith
Reply #16 on: August 09, 2009, 09:31:58 AM
That is an amazing mod! Great thinking!  :cheers:

I really hope Vic sees this and gets an idea...  ;)
[


hn Offline cliosguy

  • No Life Club
  • ******
    • Posts: 4,595
  • no nacimos con miedo...
Re: OH Locksmith
Reply #17 on: August 10, 2009, 07:36:09 PM
brilliant mate :tu:
A


00 Offline Freudian Frog

  • No Life Club
  • ******
    • Posts: 4,230
  • I just don't know what went wrong.
Re: OH Locksmith
Reply #18 on: August 10, 2009, 07:49:09 PM
Now that's a mod worth modding... :D
Got those frog legs.


mx Offline Sidhartha

  • Hero Member
  • *****
    • Posts: 807
  • Hecho en México
Re: OH Locksmith
Reply #19 on: August 11, 2009, 06:11:53 PM
my ideal sak!!!  great mod! :D
custom swiss army knives


scotland Offline Sea Monster

  • No Life Club
  • ******
    • Posts: 4,234
Re: OH Locksmith
Reply #20 on: August 24, 2009, 07:06:31 AM
Is it plausible to remove the Can Opener/Cap Lifter layer, just leaving the Blade, Saw, & File?


spam Offline Zack

  • No Life Club
  • ******
    • Posts: 3,126
Re: OH Locksmith
Reply #21 on: August 24, 2009, 06:26:09 PM
I think you could but you would also lose the reamer as well.  But I'm no expert.


um Offline Mr. Whippy

  • Global Moderator
  • *
  • *
  • Zombie Apprentice
  • *
    • Posts: 12,170
  • North American Meetup: May13-15 2011
Re: OH Locksmith
Reply #22 on: August 24, 2009, 06:45:03 PM
Is it plausible to remove the Can Opener/Cap Lifter layer, just leaving the Blade, Saw, & File?

It may mess up the liner lock.  The other side of the blade lock, kicks out to lock the caplifter/standard driver.


scotland Offline Sea Monster

  • No Life Club
  • ******
    • Posts: 4,234
Re: OH Locksmith
Reply #23 on: August 25, 2009, 01:26:13 AM
Quote
It may mess up the liner lock.  The other side of the blade lock, kicks out to lock the caplifter/standard driver.

Wouldn't it just rest against the outer liner, to no effect?


um Offline Mr. Whippy

  • Global Moderator
  • *
  • *
  • Zombie Apprentice
  • *
    • Posts: 12,170
  • North American Meetup: May13-15 2011
Re: OH Locksmith
Reply #24 on: August 25, 2009, 02:05:02 AM
Quote
It may mess up the liner lock.  The other side of the blade lock, kicks out to lock the caplifter/standard driver.

Wouldn't it just rest against the outer liner, to no effect?

Maybe, not sure if it would act funny when locking up the main blade.


ca Offline PyroJames

  • No Life Club
  • ******
    • Posts: 1,571
Re: OH Locksmith
Reply #25 on: August 25, 2009, 02:10:17 AM
Oh wow, that's a fantastic mod, Whippy!  :tu:
